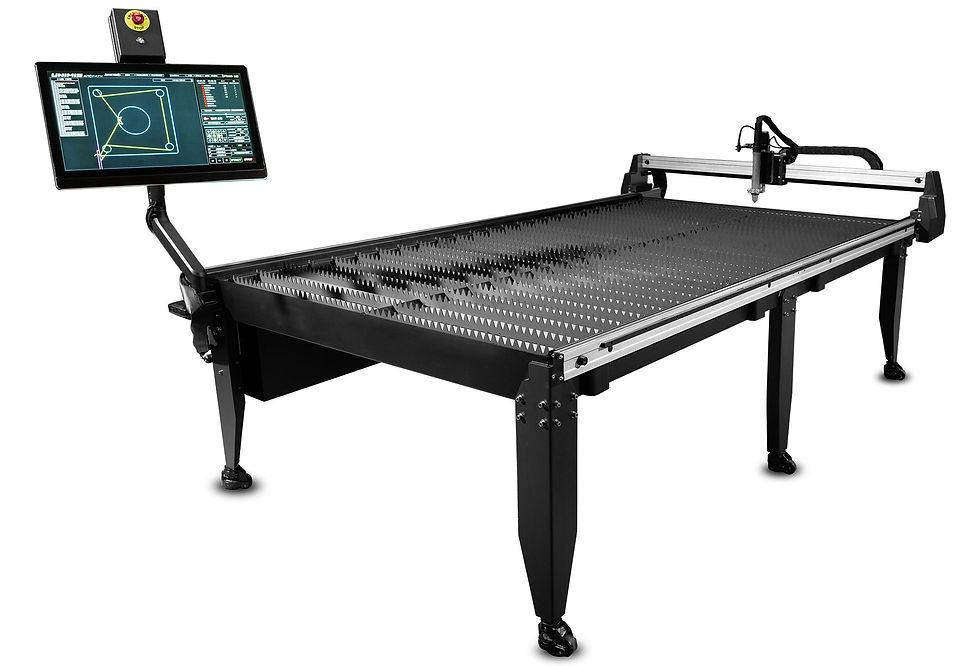

PRO-CUT SERIES CNC PLASMA CUTTING TABLES
Key Features:
-
230V AC 50/60Hz single phase power supply
-
3 Axis CNC cutting table
-
1.2m x 1.2m (Pro-Cut 1200)
-
1.2m x 2.4m (Pro-Cut 2400)
-
Integrated water bed to assist with fume and debris capture
-
THC - Automatic plasma torch height control (Z axis)
-
21” Windows 10 based touchscreen PC
-
Pre-installed intuitive software allows the operator to quickly and easily create design files even with limited experience
-
CNC & CAM software included which except DXF imported files
-
Proximity limit switches on X & Y axis
-
Cutting speeds up to 6000mm/min
-
Fully compatible with Jasic plasma power sources with a pierce cut capacity of up to 20mm (mild steel)
-
Designed with castor feet for easy manoeuvrability around the workshop
-
Supplied with the JIT-04 trolley to sit the plasma machine on
-
Delivered part assembled, making self install and assembly easier
-
Installation and training option is available (POA)
-
CE & UKCA Certified
-
2 Year Warranty
Sales Leaflet PDF
click to download
Product Information Booklet PDF
click to download
The PRO-CUT Series is a cost effective space saving solution for CNC precision quality cutting demands, suitable for light fabrication workshops and educational centres.
Designed with simplicity and usability in mind, the PRO-CUT Series is easy to install and operate, meaning the operator can achieve high quality cuts right away.
Technical Data:
Input Voltage
Motors
Axis
Cutting Area
Cutting Speed (max)
Control System
Table Weight
Max Load Weight
Plasma Torch
Dimensions (L x D x H) mm
230V AC 50/60HZ
Micro Step Motors 3 Amp
3 (X, Y & Z) Axis
Pro-Cut 1200 - cutting area 1.23m x 1.22m
Pro-Cut 2400 - cutting area 1.23m x 2.44m
6000mm per minute
21” touchscreen PC c/w windows 10
Pro-Cut 1200 - 200 Kg
Pro-Cut 2400 - 340 Kg
Pro-Cut 1200 - 175 Kg
Pro-Cut 2400 -285 Kg
Pro-Cut 1200 - TM125 6m
Pro-Cut 2400 - TM125 12m
1650 x 1700 x 1150 (Pro-Cut 1200)
2850 x 1700 x 1150 (Pro-Cut 2400)
Packages Include:
PRO-CUT 1200 CNC table PRO-CUT 2400 CNC table
Jasic Plasma source * Options below Jasic Plasma source * Options below
TM125 machine torch 6m TM125 machine torch 12m
5L Biologicut fluid (qty 1) 5L Biologicut fluid (qty 2)
JIT-04 4 wheel Trolley JIT-04 4 wheel Trolley
Plasma Consumables starter set Plasma Consumables starter set
Power Source Options:
EVO CUT 45 - 230V AC (6mm max pierce cut)
Order Code: ZXPROCUT1200EP-45
Order Code: ZXPROCUT2400EP-45
EVO CUT 80 - 400V AC (18mm max pierce cut)
Order Code: ZXPROCUT1200EP-80
Order Code: ZXPROCUT2400EP-80
EVO CUT 100 - 400V AC (20mm max pierce cut)
Order Code: ZXPROCUT1200EP-100
Order Code: ZXPROCUT1200EP-100
