EVOLVE 200 Multi Process Inverter
MIG Torch (4 Button Control) 4m, Regulator, Hose & Earth Lead
Order Code:ZXEV-200P
List Price: £2598
Discount available from your local dealer
Features
• Single and double pulse synergic MIG
• High frequency LIFT DC pulse TIG
• Hard Core MIG Torch with 4 button digital control
• MMA mode
• 4 roll wire feeder
• Wi-Fi enabled firmware updates
• App control
• Digital control MIG torch
• 100+ synergic programs
• 100 job memory storage
• 2T/4T Spot trigger control
• IP23S
• On demand cooling
• ABAP: Active Balancing Air Passage
• Fan on demand
• Ideally suited for light industrial fabrication work
• Generator friendly * must have AVR
Single & Double Pulse MIG
Pulse welding reduces the heat and minimises spatter, without compromising penetration, so its perfect for thin and soft materials like aluminium.
A single pulse weld alternates between a peak current and a background current. Double pulse welding works the same way, but with a second background current to add even more control over the arc.
4 Roll
Wire Feeder
Digital Control
Fully
Synergic
ARM Cortex M4
Microprocessor
5" Colour LCD
Touch Screen
Double Pulse
MIG/MAG
Welding
Glick
Function
Inverter
Frequency
Modulation
High
Frequency
Tig Welding
100 Job
Memory Slots
Product Video
2T/4T/SPOT
Choose between two-touch, four-touch and spot modes to maximise operator comfort on every weld.
High Frequency DC TIG
You can maintain complete control over your TIG welds with the EVOLVE 200+. The high frequency DC TIG welding mode comes with a full set of adjustable parameters, like pre- and post-flow, up and down slopes, as well as all things pulse.
Standard, Pulse & Mix TIG Modes
Standard TIG
Standard TIG welding.
Pulse TIG
TIG welding with pulse that alternates between the peak and the base current. Minimises the heat input without compromising on penetration.
Mix TIG
TIG welding mode that adds a vibration to the weld cycle which aids welding with larger gaps in the workpiece.
Inductance Correction
Change the frequency of your short circuit MIG welds with the Inductance settings, allowing you the freedom to choose your preferred arc characteristics.
Mobile App Control
Take full control of you welding with EVOLVE's mobile app.
Connect via Bluetooth or Wi-Fi, adjust parameters in real-time, and enjoy seamless navigation.
Firmware Updates
Users can receive push notifications on the EVOLVE200+ whenever there’s a new version of firmware available. Upon the user’s approval, the machine will download the updated firmware automatically.
Energy Saving Smart Fan
The on demand Smart Fan diminishes noise, saves power, helps reduce energy costs, and minimises the number of contaminants being pulled through the machine.
Optional Accessories
Foot Control Unit
Order Code: JFC-EVOLVE
5" Colour LCD Touch Screen

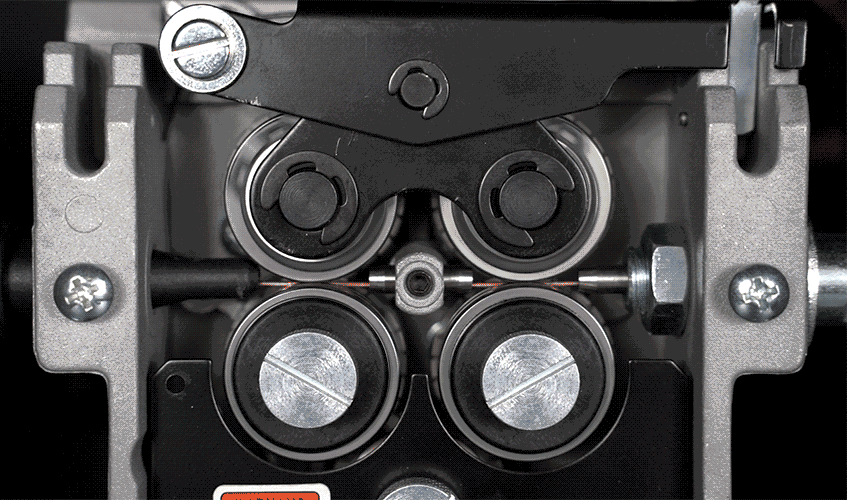

4 Roll Wire Feed System
With four geared wire drive rollers, you will get a more consistent and smoother wire feeding experience.
The internal housing also features storage space for additional rollers, so they’re always in easy reach.
The EVOLVE also comes equipped with an internal spool light, for max visibility in any lighting conditions.
Digital Torch Control
Adjust your amps, current and voltage right on the MIG torch itself. Plus, if you plug in a TIG torch, pressing the trigger will automatically switch you to the TIG screen and vice versa.
GLICK Heat Control
When using the GLICK function, set a base current, which you can switch to at any time during a weld by pressing the trigger button. GLICK is great for manual heat input control as you go..
Feed Roller Storage & LED Lighting
Stick (MMA)
You’ll be able to STICK weld anything, including cellulosic electrodes, plus with the addition of Anti Stick, you’ll never struggle to strike an arc again.
The Arc Force function helps to keep the arc stabilised throughout the weld, so it won’t cut out, and stops the electrode from sticking.
100+ Synergic Programs
Just select your metal, wire size and gas and you're good to go.
Job Memory (100 Slots)
Save your favourite weld settings for easy recall.
Active Balancing Air Passage
-
Internal airflow is optimally diverged by a segregation structure.
-
The divergence of airflow can dissipate heat generated by power electronics in a more balanced manner.
-
The power source's overall reliability is improved with the internal structure design.
Generator Friendly
The EVOLVE inverter can be used with an AVR (Automatic Voltage Regulator) type power generator.
Recommended size 11 kVA.
