The Jasic MIG 200 Synergic compact is equipped with powerful IGBT components, multi process capabilities, digital meters and a singular PCB for improved effeciency and maintenance.

This compact and portable synergic inverter offers excellent welding characteristics and consistently reliable performance for both

MIG/MAG and MMA welding processes.

Order Code: ZXJM-272S

MIG 270 Separate Inverter Welder

Discount available from your local dealer

List Price: £3044

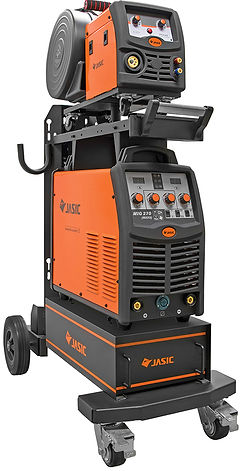

Jasic MIG 272 Separate Inverter Welder

Advanced single phase inverter providing

rugged, reliable performance

The Jasic MIG 270 Separate inverter welder is equipped with powerful IGBT components, a digital A/V display and multi process capabilities.

This modular inverter package offers excellent welding characteristics and consistently reliable performance for highly demanding and repetitive weld cycles.

This high quality 230V MIG welder delivers an impressive 270 amps at 30% duty cycle, making it an excellent choice for single phase applications.

Inverter Features

  • Single Phase IGBT MIG inverter welder

  • High powered 230V welding machine

  • Digital amp and volt meters

  • 4 Roll wire feed unit

  • High duty cycle - single phase inverter

  • Advanced control circuitry

  • Suitable for 0.6/0.8/1.0 and 1.2mm wires

  • Burn back control & wire inching

  • 2T/4T trigger function

  • Power & status LED's

  • Gas check function

  • Variable inductance

  • Inverter trolley takes full size gas cylinder

Technical Data


Solid Wire

Steel up to 7.9mm (5/16")

Stainless Steel up to 9.5mm (3/8")

Aluminium up to 9.5mm (3/8")

Flux Cored Wire

Steel up to 6.4mm (1/4")

Inverter Package Includes

MIG inverter welder, MIG welding torch, Earth return lead,

Gas hose and Regulator,
