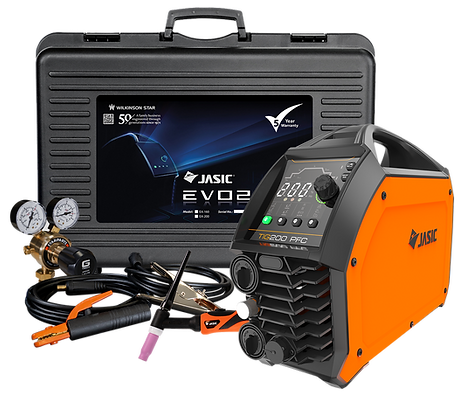

 EVO TIG 200 PFC Inverter
c/w Carry Case, TIG Torch 4m, Regulator, Hose & Lead Set

Order Code: ET-200

List Price: £825

Discount available from your local dealer

Key Features

• Rugged, ergonomic design

• ClearVision technology

• Adaptable wide voltage range

• Dash-Arc

• Smart Lift TIG

• Full featured DC TIG parameters

• Flexible remote control solutions (optional)

• Power factor correction (PFC), generator friendly

• Quick factory reset; auto sleep mode

• ABAP: Active Balancing Air Passage

• Smart gas for optimised shielding gas consumption

• Fan on demand

• Voltage Reduction Device (VRD)

• Key power electronic component protection

• Overcurrent and overheat protection

• Complete with protective case, torch, leads, regulator

Industrial Design Highlights


Overall Look

Rugged, robust and industrial.

Control Panel

Slanted 45° angle for enhanced visibility and viewing comfort.

Streamlined Handle

Elevates overall aesthetics of the power source and provides a comfortable, firm and glove-friendly grip.

Front Grill

A sloped front grill offers a perfect balance between heat dissipation and ingress protection (IP23S).

Lateral Plate

Detachable for easy servicing, reinforced for enhancing the structures impact strength.


Next generation HD digital panel providing crisp and clear reading, visible under direct sunlight.

tig200pfc panel_edited_edited.jpg

With 45° slanted angle for improved visibility and a 41% enhanced

viewing area compared to a vertically positioned control panel.

Dash-Arc

Dash Arc NEW.png
Dash Flash.png

Dash-Arc technology for HF TIG. Delivers 99+ % arc striking success rate, high consistency and high ignition response rate (50-60ms).

Smart Gas

New Smart Gas.png
Smart Gas Type.png

Automatic post flow time adjustment for TIG welding according to actual welding current and time, etc. Reduces shielding gas consumption up to 40% compared to conventional products.

Wide Voltage Adaptation

95

wide voltage orange.png

265

Compatible with input power sources of AC 95-265 volts.

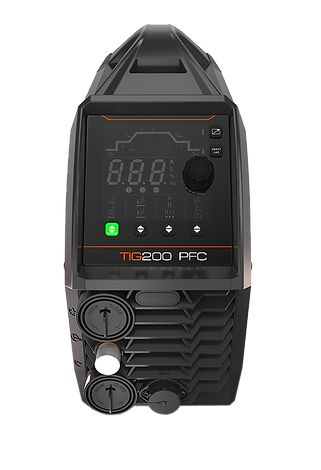

Auto Sleep Mode

TIG200 PGC SLEEP.png
Sleep Cloud.png
Blink Green.png

The power source will enter standby mode after being idle for 10 minutes. This will reduce the power consumption to below 15W and reduce energy costs.

Overheat & Overcurrent Protection

Temp Indicator.jpg

The overheat warning light indicates that the machine has entered overheat protection and stops the welding output, the machine will re-activate once the unit has cooled down.

voltage indicator.jpg

The overcurrent warning light indicates that the machine has entered over-current protection and stops the output. The machine can be reset  by turning off and then back on.

Generator Friendly

AVR Generator copy.png

The EVO TIG 200  PFC inverter can be used with an AVR  (Automatic Voltage Regulator)  type power generator.

Recommended size is 5  kVA (AC 115V) and 7 kVA (AC 230V).

JIT-O1 TROLLEY.png

Optional Accessories

EVO Handheld Remote Control

(Wired)

Order Code: HRC-04

EVHandheld Remote Control

(Wireless)

Order Code: HRC-02


EVFoot Pedal Control

(Wired)

Order Code: FRC-01

EVO Foot Pedal Control

(Wireless)

Order Code: FRC-02


EVO Inverter Trolley

Order Code: JIT-01


Wide Voltage

Adaptation

Smart Gas

Dash-Arc

for HF TIG

Smart

Lift-TIG

On Demand

Fan

Energy Saving

Environment

Friendly

Input

Power Source

Power Factor

Correction

PFC

Intelligent Synergic Control

TIG synergic dc 200.jpg

Getting set up for a weld has never been faster with our preset synergic programs. Simply select your wire type, wire size, gas type and material thickness, and the machine does the rest. It’ll pick the optimal settings for your weld.

 Power Factor Correction (PFC)


Improves overall energy efficiency and allows use with AVR generators.

Smart Lift-TIG

Lift TIG.png

The trigger controlled DC Lift Arc ignition allows the arc to be started easily by simply touching the tungsten to the workpiece and lifting it up to start the arc. This stops the tungsten tip sticking to the workpiece and breaking the tip from the tungsten electrode.

 Advanced MMA Features

MMA ICON.png

This machine features Anti-Stick technology, as well as adjustable Arc Force and Hot Start functionality. These features are designed for improving weld quality and ease of use.

Voltage Reduction Device

VRD ICON.jpg

In MMA (Stick) mode VRD reduces the open-circuit voltage of the inverter.

When the welding machine is on, but not being used (like when you’ve just finished an electrode and need to grab a new one), the VRD kicks in and lowers the voltage to

a safer level (usually around 13V).

 Active Balancing Air Passage

  • Internal airflow is optimally diverged  by a segregation structure.

  • The divergence of airflow can dissipate heat generated by power electronics in a more balanced manner.

  • The power source's overall reliability is improved with the internal structure design.

Energy Saving Smart Fan

smart fan 2.png

The on demand Smart Fan diminishes noise, saves power, helps reduce energy costs, and minimises the number of contaminants being pulled through the machine.

Quick Factory Reset

hand button.png
button press.png

Quick reset to the factory programmed settings in the event of the operator selecting an incorrect setting.
